Multilayer Constructions
Listed below are the standard stack-ups mostly requested by our customers.
If you need a different, non-standard stack-up configuration, please do not hesitate to ask. our Technical Experts will check its viability, and if approved, we would be delighted to supply.
To view any stack-up, click on the reference number to display the details in a new window.
| Number of Layers | Final Thickness | Reference | Remarks |
|---|---|---|---|
| 4 Layers |

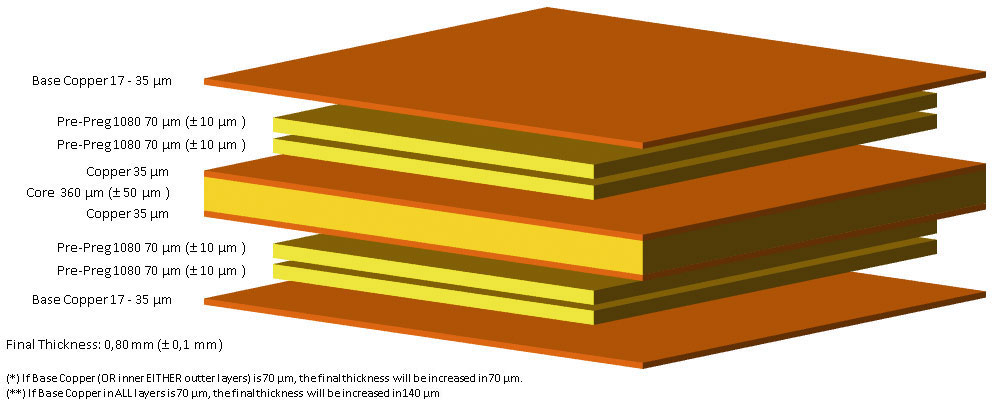

0,8 | 4080036 | |

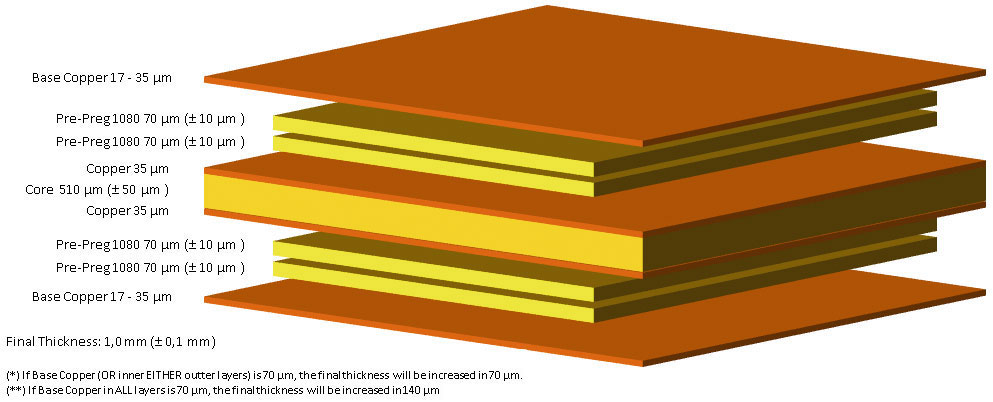

| 1,0 | 4100051 | ||

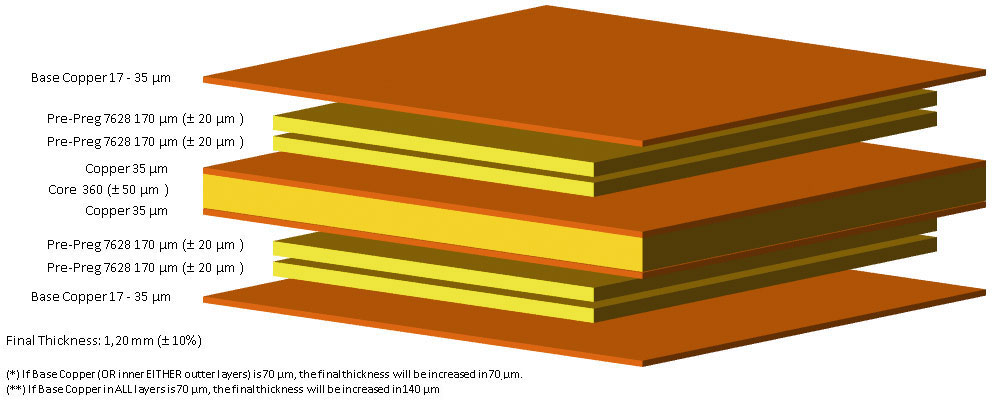

| 1,2 | 4120036 | ||
| 1,4 | 4140051 | ||

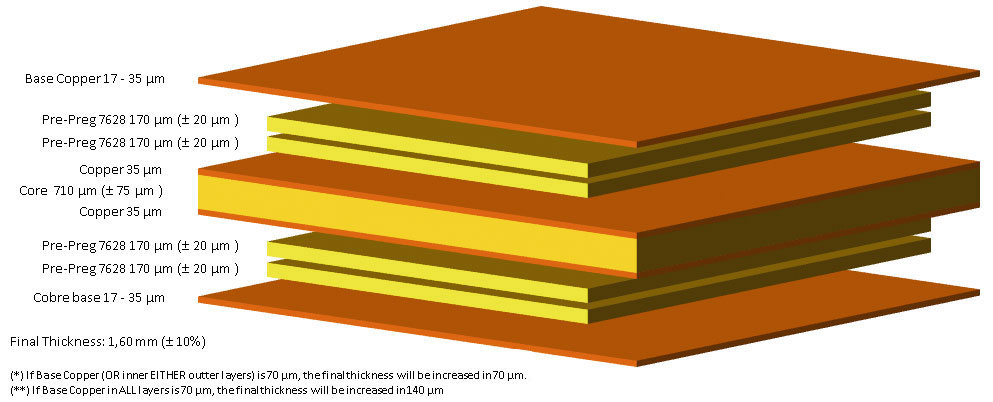

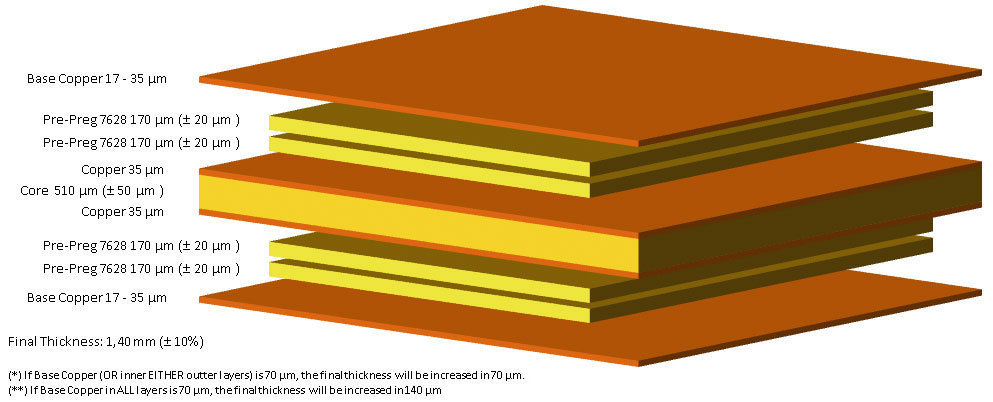

| 1,6 | 4160071 | Standard stack-up used for most of 4 layer PCBs | |
| 1,6 | 4160102 | Alternative stack-up to be used in case of stock rupture or also under Customer´s request | |

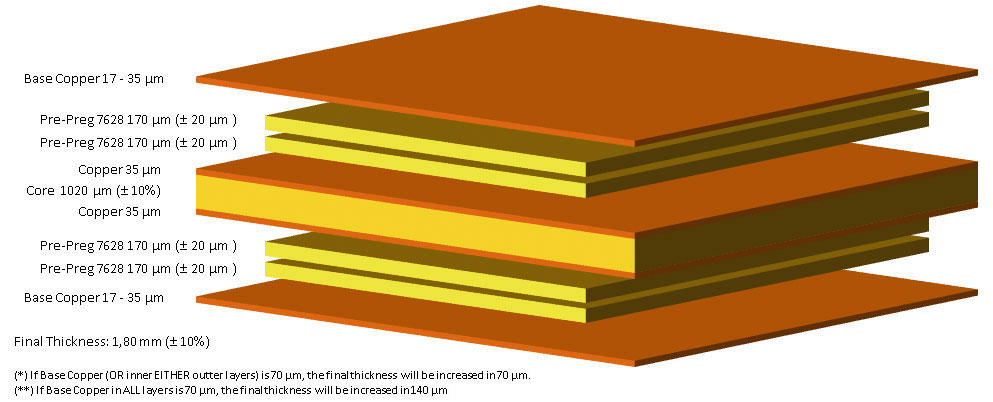

| 1,8 | 4180102 | ||
| 2,0 | 4200120 | ||

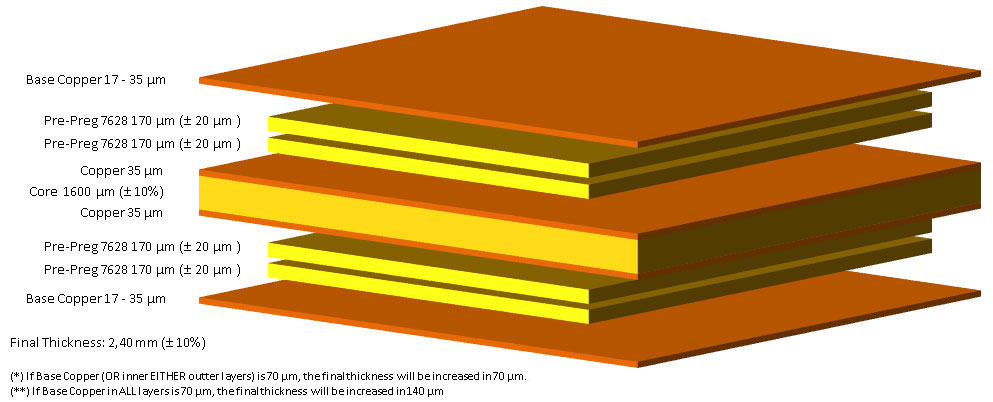

| 2,4 | 4240160 | ||
| 2,8 | 4280200 | ||

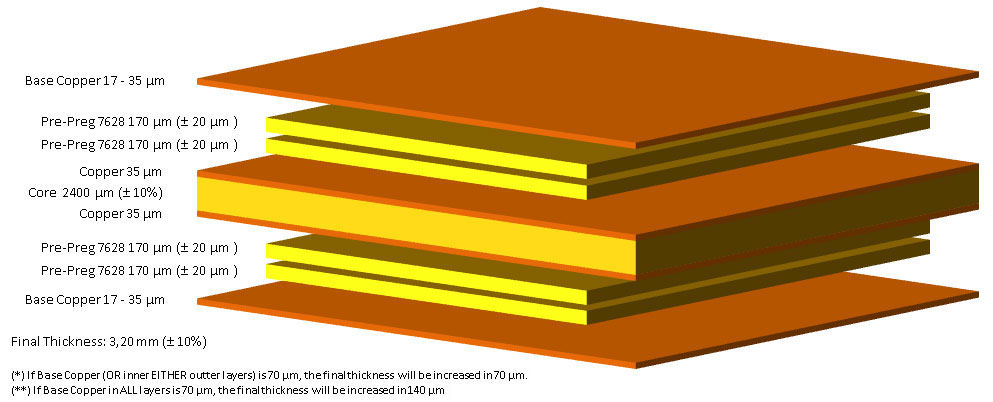

| 3,2 | 4320240 | ||

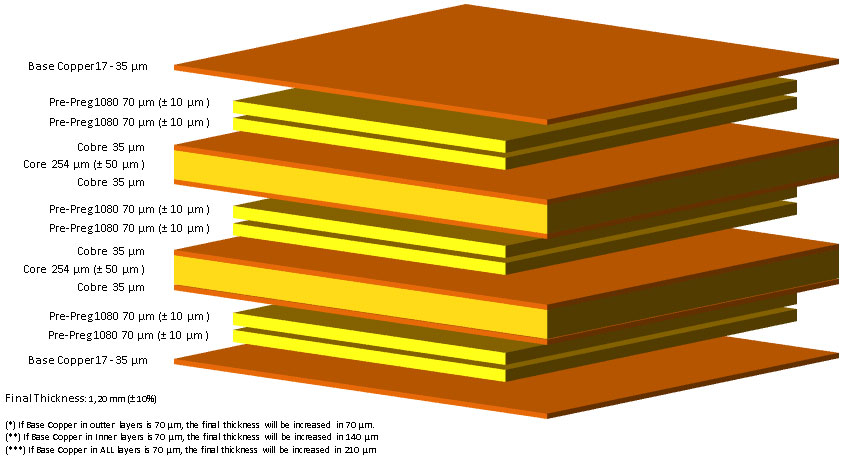

| 6 Layers | 1,2 | 6120025 | |
| 1,4 | 6140036 | ||
| 1,6 | 6160051 | Standard stack-up used for most of 6 layer PCBs | |
| 1,8 | 6180025 | ||
| 2,0 | 6200071 | ||

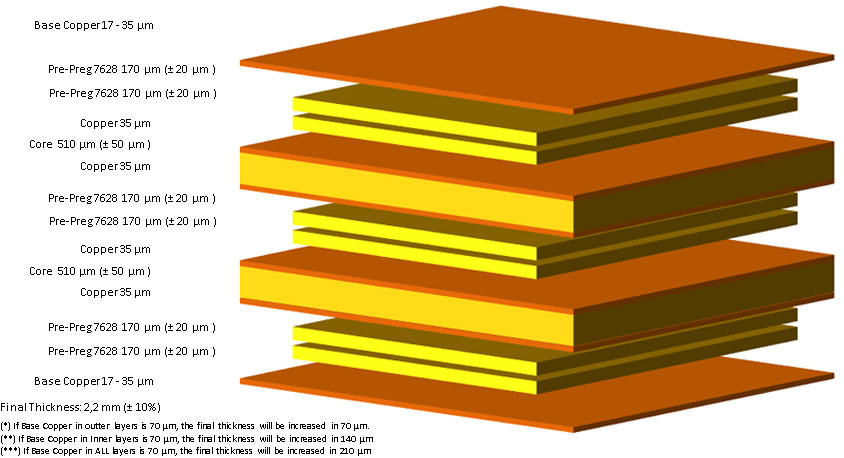

| 2,2 | 6220051 | ||
| 2,4 | 6240071 | ||
| 2,8 | 6280102 | ||
| 3,2 | 6320102 | ||
| 8 Layers | 1,6 | 8160025 | Standard stack-up used for most of 8 layer PCBs |

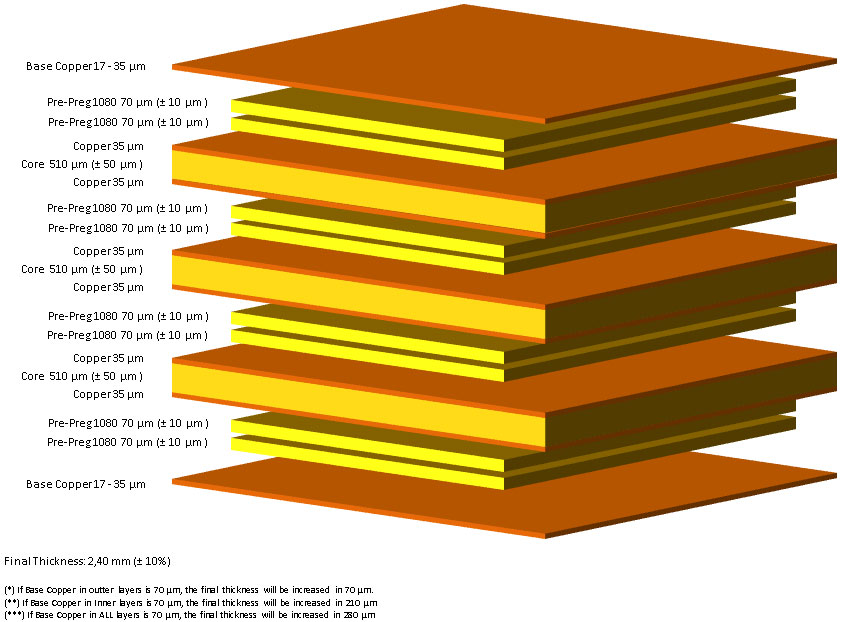

| 2,4 | 8240051 |
